Ceramic Dielectric Duplexers
产品分类

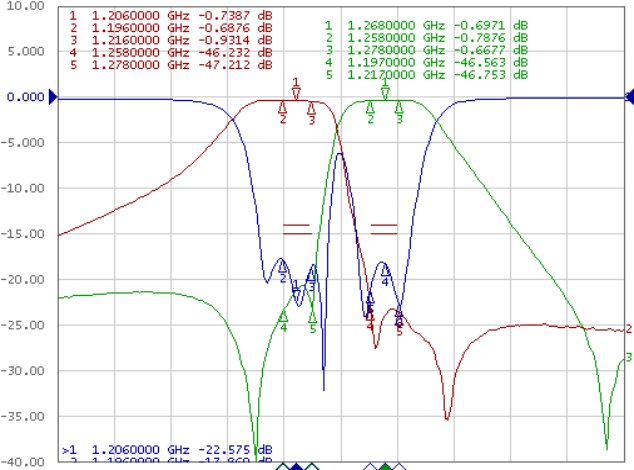

电气规范
| Item | Spec | Unit |
| Center Frequency | 1206-1268 | MHz |
| Band Width | 20 | 20 | MHz |
| Insertion Loss | 1 | 1 | dB |
| Ripple in BW | 0.5 | 0.5 | dB |
| VSWR in BW | 1.5 | 1.5 |
|
| Attenuation | 30dB@1258~1278 | 30dB@1197~1217 | dB |
| Interface Method | SMT |
|

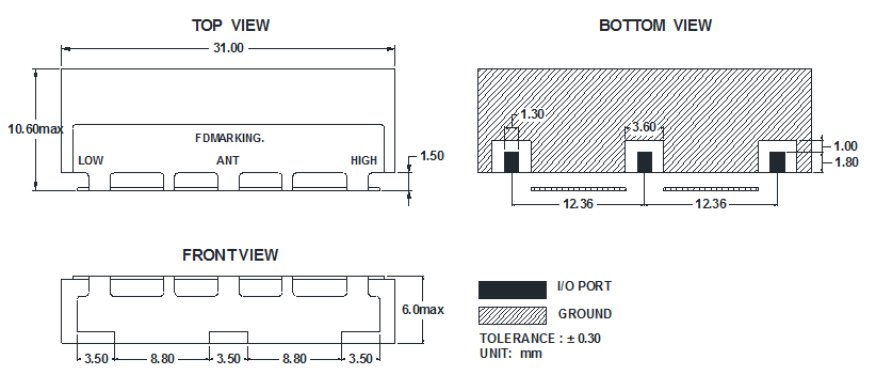

| Size（W*L*H) | 31.0*10.6*6.0 | mm |
| Form | Band Pass |
|
-
