Ceramic Dielectric Duplexers
产品分类
电气规范
| Item | Spec | Unit |
| Center Frequency | 1795-2045 | MHz |
| Band Width | 170 | 250 | MHz |
| Insertion Loss | 2 | 2 | dB |
| Ripple in BW | 1.2 | 1.2 | dB |
| VSWR in BW | 1.9 | 1.9 |
|
| Attenuation | 48dB@1920~2170 | 48dB@1710~1880 | dB |
| Interface Method | SMT |
|

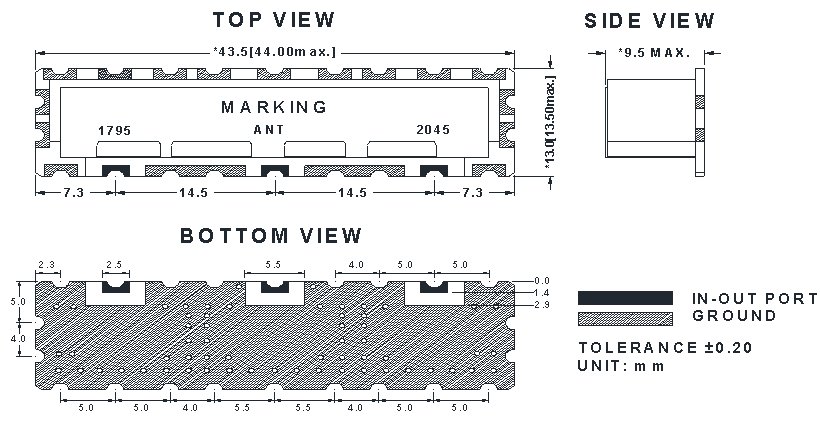

| Size（W*L*H) | 43.5*13.0*9.5 | mm |
| Form | Band Pass |
|
-
