Ceramic Dielectric Duplexers
产品分类

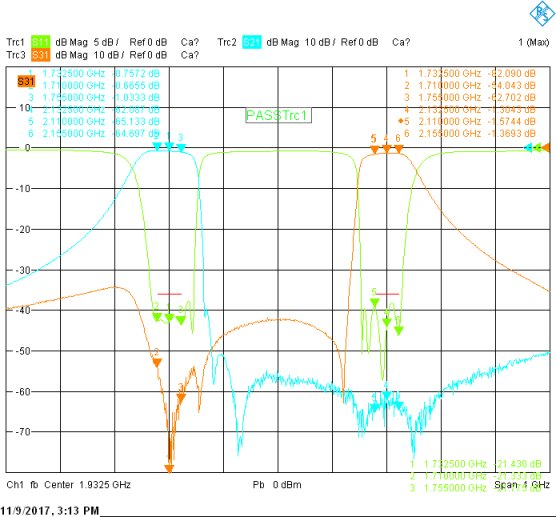

电气规范
| Item | Spec | Unit |
| Center Frequency | 2132-1732 | MHz |
| Band Width | 45 | 45 | MHz |
| Insertion Loss | 2.5 | 2.5 | dB |
| Ripple in BW | 1 | 1 | dB |
| VSWR in BW | 1.4 | 1.4 |
|
| Attenuation | 50dB@2110~2155 | 50dB@1710~1755 | dB |
| Interface Method | SMT |
|

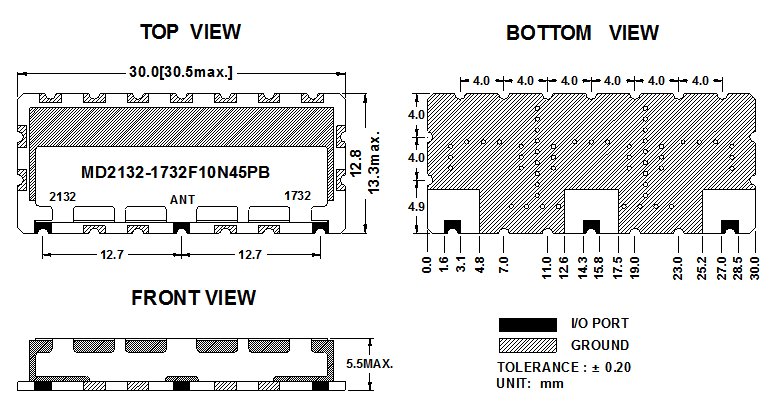

| Size（W*L*H) | 30.0*12.8*5.5 | mm |
| Form | Band Pass |
|
-
