Ceramic Dielectric Filter
产品分类
电气规范
| Item | Spec | Unit |
| Center Frequency | 1995 | MHz |
| Band Width | 30 | MHz |
| Insertion Loss | 2 | dB |
| Ripple in BW | 0.5 | dB |
| VSWR in BW | 1.5 |
|
| Attenuation | 40dB@2190 | dB |
| Interface Method | SMT |
|

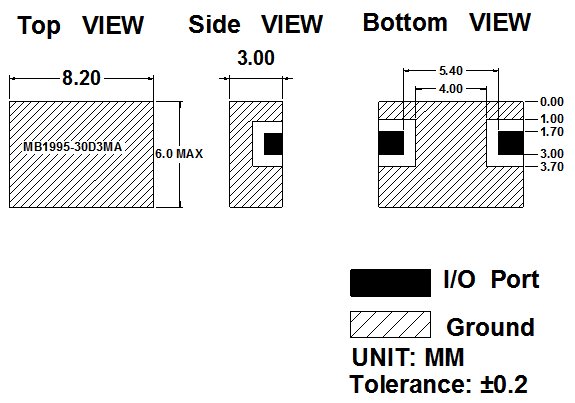

| Size（W*L*H) | 8.2*6.0*3.0 | mm |
| Form | Band Pass |
|
-
