5G Small Cell Base Station Series Filter
产品分类
电气规范
| Item | Spec | Unit |
| Center Frequency | 2345 | MHz |
| Band Width | 50 | MHz |
| Insertion Loss | 3.5 | dB |
| Ripple in BW | 1.5 | dB |
| VSWR in BW | 1.5 |
|
| Attenuation | 55dB@2412~2484 | dB |
| Interface Method | SMT |
|

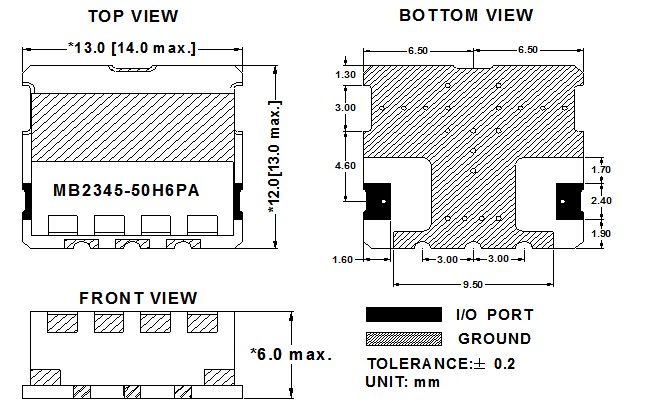

| Size（W*L*H) | 14*13*6 | mm |
| Form | Band Pass |
|
-
