LC Duplexers
产品分类
电气规范
Item | Spec | Unit |
Center Frequency | 100-130 | MHz |
Band Width | 00 | 20 | MHz |
Insertion Loss | 3.0 | 3.0 | dB |
Ripple in BW | 2.0
| 2.0 | dB |
VSWR in BW | 1.5 | 1.5 |
|
Attenuation | 45dB@120~140 45dB@150~25 | 50dB@DC~100 50dB@165~250 | dB |
Interface Method | SMT |
|

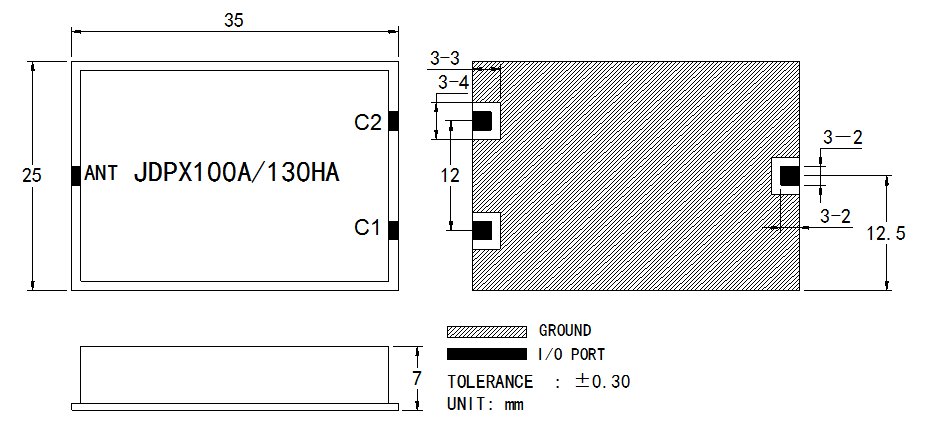

Size（W*L*H) | 35.0*25.0*7.0 | mm |
Form | Band Pass |
|
-
