Item
Spec
Unit
Center Frequency
2491.75
MHz
Band Width
16.5
Insertion Loss
0.6
dB
Ripple in BW
0.4
VSWR in BW
1.5

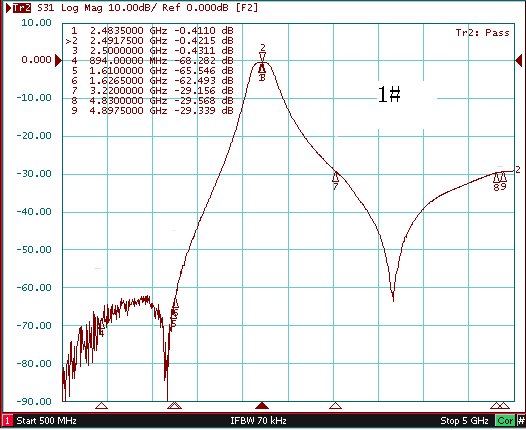

Attenuation
55dB@824~894
45dB@1610~1626.5
20dB@3220~3253
28dB@4830~4897.5
Interface Method
SMT

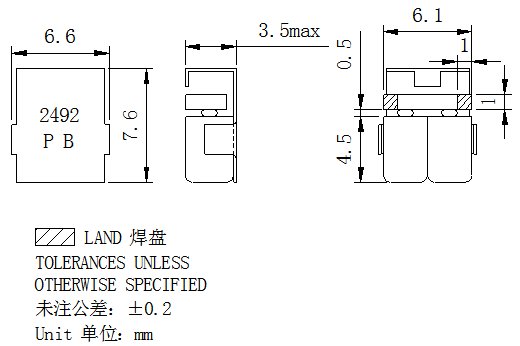

Size（W*L*H)
6.6*7.6*3.5
mm
Form
Band Pass
