Beidou/GPS/Galileo/GLONASS Series Filter
产品分类
电气规范
| Item | Spec | Unit |
| Center Frequency | 1575 | MHz |
| Band Width | 40 | MHz |
| Insertion Loss | 0.8 | dB |
| Ripple in BW | 0.3 | dB |
| VSWR in BW | 1.5 |
|
| Attenuation | 10dBc@1475&1675 | dB |
| Interface Method | SMT |
|

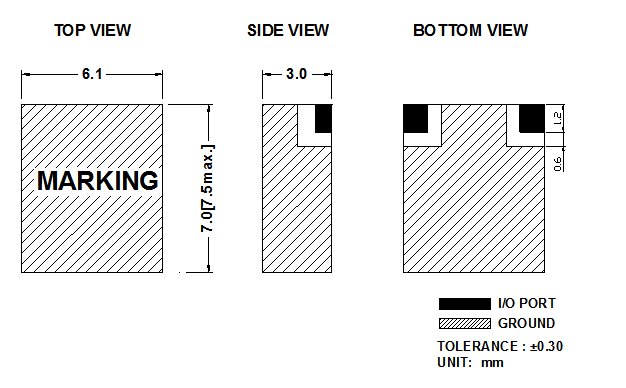

| Size（W*L*H) | 6.1*7.0*3.0 | mm |
| Form | Band Pass |
|
-
