Beidou/GPS/Galileo/GLONASS Series Filter
产品分类
电气规范
| Item | Spec | Unit |
| Center Frequency | 2491 | MHz |
| Band Width | 8 | MHz |
| Insertion Loss | 0.6 | dB |
| Ripple in BW | 0.3 | dB |
| VSWR in BW | 1.5 |
|
| Attenuation | 30dBc@1616 | dB |
| Interface Method | SMT |
|

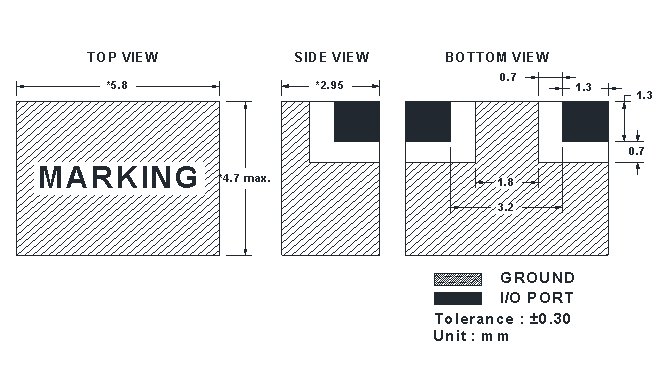

| Size（W*L*H) | 5.8*4.7*2.95 | mm |
| Form | Band Pass |
|
-
